    High Brightness Advertisement LED Variable Message Signs Good Heat Dissipation

    Ask Lasest Price
    Brand Name : YAHAM
    Model Number : YH-KXB-L-D25
    Certification : CE/FCC/ GB23828-2009/EN12966/NTCIP
    Price : Negotiation
    Payment Terms : T/T or FOB Shenzhen
    Supply Ability : 3,000pcs per month
    Delivery Time : 40 working days after received your payment
    • Product Details
    • Company Profile

    High Brightness Advertisement LED Variable Message Signs Good Heat Dissipation


    High Brightness Advertisement LED Variable Message Signs Good Heat Dissipation


    Variable Message sign(VMS) is used to show variable real time traffic massage to distribute transport information to the public including the highway/Smart motorway/smart city/Bridges/Tunnels/Car parks/Mobiles/Airports. it is able to display variable graphic and text message to the drivers about the road condition, weather warning information and emergency information. The key point is we use innovation LED technology to ensure the visibility and reliability.


    Specifications:

    ProductYHT-D16
    LED TypeDIP type
    Pixel Pitch16mm
    Pixel Density3906 pixel/ m2
    Pixel Configuration2A / 1R1G / 2R1G / 1R1G1B

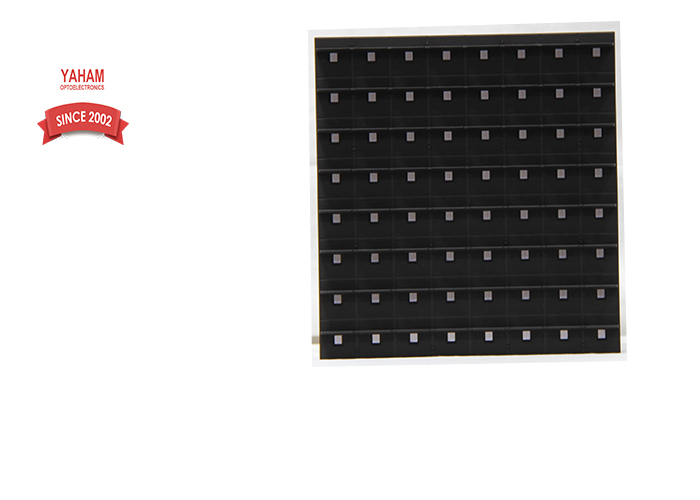

    Module Dimension (H x W)256mm*256mm
    Module Resolution (H x W)16*16mm
    Cabinet Dimension (H x W x D)1024mm*1024mm
    Cabinet Resolution (H x W)64*64
    Screen Weight65KG/sqm AL; 85KG/sqm Steel
    Viewing Angle30°/30°
    Best Viewing Distance16m+
    MaintenanceRear service
    Protection LevelIP65
    Brightness(Peak White at 6,500k)

    Red: >3100nits, Green>3720nits, Blue>1240nits,

    Amber>7440nits, White:>12400nits

    ColourSingle color / Dual color / Full color optional
    Contrast RatioWhite 16.7 Yellow10,Green5,Red4.2,Blue1.7
    Power Supply220v or 12v-24v available
    Operation Temp.-20℃-+60℃
    Storage Temp.-40℃-+80℃
    Operation Humidity.5%-95%RH
    Display CapacityText / Image
    Driving Method1 scan
    PowerConsumption500W/sqm(Max.)

    Description:


    1. Full Variable Message Sign is one of the most common types of traffic signs.


    2. Small spacing and high definition can display the picture clearly.


    3. High brightness. The brightness can up to 6500 cd/㎡, if the direction is face to the sun, you still can see the images on the screen.


    4. No mosaic due to excellent flatness and nice uniformity of light-emitting,making the images softer and vivider.


    5. Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.


    6. High stability and long span.


    Applications:


    road & bridge construction
