High Intelligence P20 Highway Traffic Signs Further Viewing Distance

    Buy cheap High Intelligence P20 Highway Traffic Signs Further Viewing Distance from wholesalers

    Buy cheap High Intelligence P20 Highway Traffic Signs Further Viewing Distance from wholesalers
    • Buy cheap High Intelligence P20 Highway Traffic Signs Further Viewing Distance from wholesalers

    High Intelligence P20 Highway Traffic Signs Further Viewing Distance

    Ask Lasest Price
    Brand Name : YAHAM
    Model Number : YH-KXB-L-D20
    Certification : CE/FCC/ GB23828-2009/EN12966/NTCIP
    Price : Negotiation
    Payment Terms : T/T or FOB Shenzhen
    Supply Ability : 3,000pcs per month
    Delivery Time : 40 working days after received your payment
    • Product Details
    • Company Profile

    High Intelligence P20 Highway Traffic Signs Further Viewing Distance


    High Intelligence P20 Highway Traffic Signs Further Viewing Distance

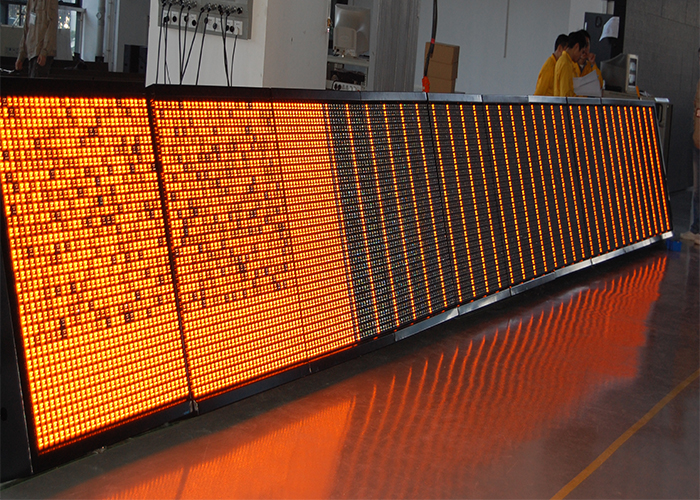

    Variable Message Signs Fixed Roadside Highway Guidance Screen Price Led Traffic Displays can display any range of text message,graphics and animations in high visibility color. The road safety traffic control led highway displays board screen VMS are popular for using in traffic management and advertisement



    Specifications:


    ProductYHT-OT20
    LED Type3 in 1 SMD type
    Pixel Pitch20mm
    Pixel Density2,500 pixel/ m2
    Pixel Configuration1R1G1B
    Module Dimension (H x W)160mm*320mm
    Module Resolution (H x W)8*16mm
    Cabinet Dimension (H x W x D)960mm*960mm
    Cabinet Resolution (H x W)48*48
    Screen Weight65KG/sqm AL; 85KG/sqm Steel
    Viewing Angle30°/ 25°
    Best Viewing Distance20m+
    MaintenanceRear service
    Protection LevelIP65
    Brightness(Peak White at 6,500k)

    Red: >3100nits, Green>3720nits, Blue>1240nits,

    Amber>7440nits, White:>12400nits

    ColourFull color
    Contrast RatioWhite 16.7 Yellow10,Green5,Red4.2,Blue1.7
    Power Supply88 ~ 264VAC ,124 ~ 370VDC
    Operation Temp.-20℃-+60℃
    Storage Temp.-40℃-+80℃
    Operation Humidity.5%-95%RH
    Display CapacityText / Image
    Driving Method1 scan
    PowerConsumption200 W/sqm(Max.)


    Description:

    1. Full Variable Message Sign is one of the most common types of traffic signs.


    2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system


    3. Full Variable Message Sign stored a variety of information, control personnel can Through the remote control device manually or automatically display a message according to what is happening on the road.


    4. The traffic environment will change due to the weather, natural disasters, traffic accidents and other reasons, Full Variable Message Sign can reflect the traffic conditions in a timely manner.

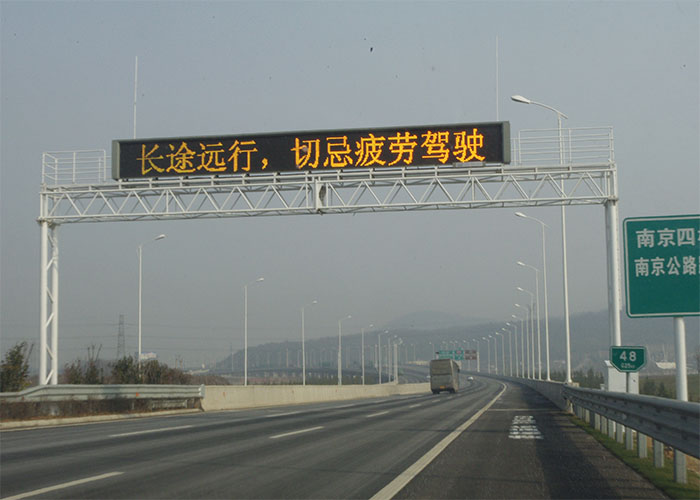

    Applications:


    THE HIGHWAY SPEED LIMIT AREA
    On the road
    bridge construction
