Lane Control Sign Color Configuration Red Cross,Green arrows and Amber Wigwag

Specifications:

Cabinet dimension: 800mm(H)X800mm(W)X150mm(D)
Number height: 235.2mm
Circle diameter: 595mm
Cabinet material: Alumium(galvanized steel optional)
Weight Alumium:30kg(steel:45kg)
Color configuration: Red circle,amber number and corner light
Corner light flash method: 1Hz alternative diagonal
Led type Nichia:NSPR/A510(Everlight:7383)
View angle: 30°/30°
Luminous intensity: amber:7800cd/m2 red:7800cd/m2
Brightness levels:64 levels(Manual/Auto)
Environment class: IP65
Temperature range: -40°C~70°C
Operating voltage:12VDC(110V-230VAC optional)
Max power consumption: 45w
Data logger file type: CSV
Data logger download method: USB or RS232 to PC
Data logger event quantity: up to 1,000 events
Communication: RS232/RF/GPRS/GSM/Wifi/Tcp-IP

Feature

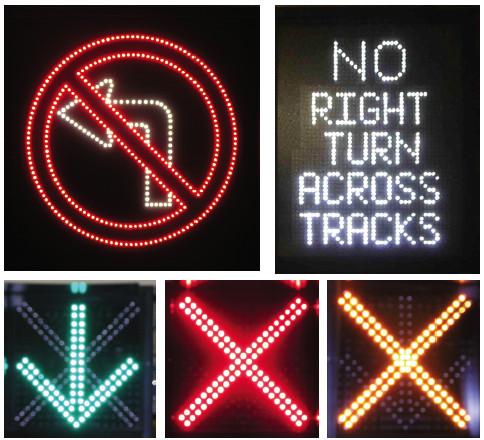

1. LED panel that is able to show up to 4 different pictograms : green arrow , red cross and amber left and right side diagonal arrows .

2. It offers excellent visibility and a great contrast with the use of 5mm LEDs with high brightness and low power consumption .

3. Lightweight aluminum enclosure that allows access to the interior through front door , making it easy to install and maintain

4. Possibility to choose between different anchoring systems depending on the location of the panel .

5. Allows control of the signal through contacts , via serial port (RS232 or RS485) or via Ethernet(RJ-45) .

6. Possibility to incorporate photocell for automatic brightness control based on ambient light

7. Possibility to offer the panel in different sizes and for different supply voltages .
