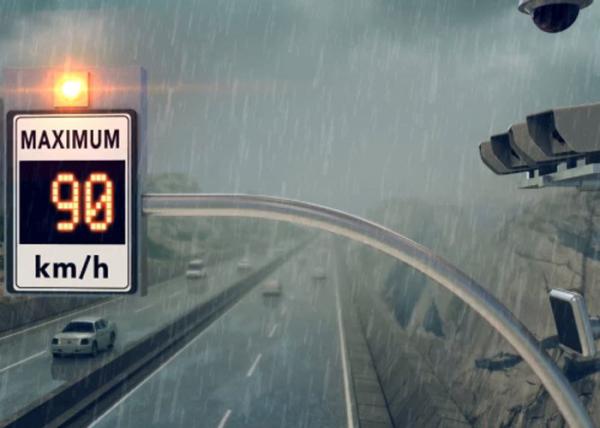

High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology

    Buy cheap High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology from wholesalers

    Buy cheap High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology from wholesalers
    • Buy cheap High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology from wholesalers

    High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology

    Ask Lasest Price
    Brand Name : YAHAM
    Model Number : YHT-SLS-F1
    Certification : CE/FCC
    Price : Negotiation
    Payment Terms : T/T or FOB Shenzhen
    Supply Ability : 3,000pcs per month
    Delivery Time : 40 working days after received your payment
    • Product Details
    • Company Profile

    High Luminance Electronic Speed Signs With Nichia High Intensity Led Technology

    Yaham Variable Speed Limit Sign That Each pixel is made up of two LED lamp


    Specifications:


    Cabinet Size800mm(H)X800mm(W)X150mm(D)
    Number height235.2mm
    Circle diameter595mm
    Cabinet materialAlumium(galvanized steel optional)
    Weight Alumium30kg(steel:45kg)
    Color configurationRed circle,amber number and corner light
    Corner light flash method1Hz alternative diagonal
    Led type NichiaNSPR/A510(Everlight:7383)
    View angle30°/30°
    Luminous intensityamber:7800cd/m2 red:7800cd/m2
    Brightness levels64 levels(Manual/Auto)
    Environment classIP65
    Temperature range-40°C~70°C
    Operating voltage12VDC(110V-230VAC optional)
    Max power consumption45w
    Data logger download methodUSB or RS232 to PC
    Data logger event quantityup to 1,000 events
    CommunicationRS232/RF/GPRS/GSM/Wifi/Tcp-IP

    Description:

    1. Advanced sign design offer perfect display of stand speed limit for led traffic


    2. With the function of temperature collection and humidity collection, monitor the condition of the environment ; the LED error detection function can detect and repair dead pixels;


    3. Information can be remotely or locally operated.


    4. Upper and lower flashing lantern also use long-life Nichia


    5. Enviromment protection to IP65.Operating temperature range:-40°C~70°C


    6. The speed limit can be customized according to customer’s demand, the speed display can be freely switched too


    Applications:

    THE HIGHWAY SPEED LIMIT AREA
    On the road
    bridge construction

    Competitive Advantage:

    Traffic control signs play significant role in guiding and shunting vehicles to ensure orderly traffic on the road. Lane control signal is the most widely used traffic control sign, especially in the toll station, tunnel, carriageway, ect
